EEC-39RFTS eddy current instrument with
remote field technology option is a new
generation eddy current instrument with
advanced digital electron, remote-field eddy
current, engineering endoscopes and
microelectronic, detecting techniques. It can
efficiently inspect both inner and outer defects of
ferromagnetic tube in real time without the effect
of lift-off, conductivity and skin effect, and pick up
the signal of eddy current and video frequency
synchronously. EEC-39RFTS with full-digital,
multi-frequency, multi-channel is a versatile
system offering a comprehensive array of
electromagnetic testing techniques available on a
single instrument. EEC-39RFS can be used to
inspect both non-ferromagnetic and
ferromagnetic tubing materials for flaws such as
pitting corrosion vibrations wear steam erosion
and crack.
EEC-39RFTS combines the advanced
testing capabilities of the EEC-39RFT with a
highly sensitive remote field technology option,
makes the instrument an ideal solution for a
broad range of tubing applications in the
petroleum chemical and power generation
industries. Where inspection of both
non-ferromagnetic and ferromagnetic materials is
required. In contrast to other ferromagnetic tubing
inspection, the EEC-39RFTS provides not only a
more complete --100% coverage with inner and
outer surface discontinuity detection, but also
thickness measurement -- in a fraction of the
time. |
| |
| Features And Specifications |
| · |
Frequencies & Channels |
| |
8 eddy current frequencies |
| |
Frequency range from 5Hz to 5MHz (Remote-field frequencies from 5Hz to 5KHz) |
| |
128 independently-selectable channels |
| |
Three signal mixing capabilities(Auto-mixing ) |
| |
Gain Adjustment |
| · |
Adjustable gain from 0dB to 90dB in 0.5dB
steps. Gain magnify:1～100 times. |
| · |
Phase |
| |
359 degrees phase shift can be varied in
steps of 1 degree, the impedance plane can be
rotated during modification for ease of operation. |
| · |

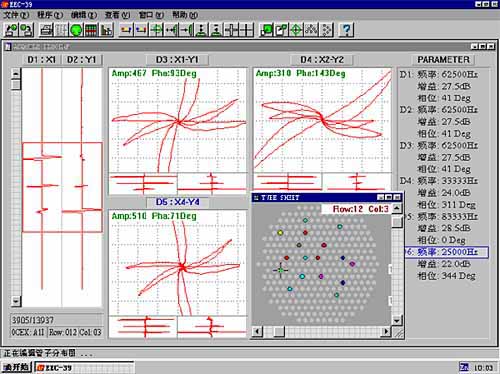

Colored Real-Time Display |
| |
Phase and amplitude scanning displays |
| |
Multi-displaying mode for selection, 8-trace of impedance plane |
| |
Selectable background for polar and right coordinate systems |
| |
Delay erase display mode |
| |
All instrument settings are shown on the display |
| · |
Alarm and others |
| |
No-equal phase/amplitude alarming area |
| |
Store various testing programs and testing data |
| |
Auto phase/amplitude display the strip curve of the cracks'deep |
| |
Digital filters/ Fast electronic balancing/ Adjustable sample rate. |
| |
Automatic/manual amplitude and phase measure, extend and replay the signal |
| |
Selectable of sound pulse testing mode and date analyzing system |
| |
With the functions of measuring cracks and testing the conductivity of material. |
| · |
Inputs |
| |
Four connectors are provided for differential,
absolute and reflection type probes. The
connectors are designed to operate with most
manufacturer’s probes. |
| |
Other connects are provided for rotating probe. |
| · |
Outputs |
| |
Eight analog outputs |
| |
Print data to Epson series |
| · |
Memory Store & Recall |
| |
Stores test setups |
| |
Stores screen images |
| · |
Easy to learn & Easy To Operate |
| · |
All parameter settings and configurations are done from the keyboard and can be individually
stored and retrieved from hard or flexible disk. |
| · |
Friendly controls are directly accessible |
|
|
 |
 |
 |
|
 |
|
